CNC Milling and engraving machine Lead CNC Openbuilds Pro 1000x1000

Technical data:

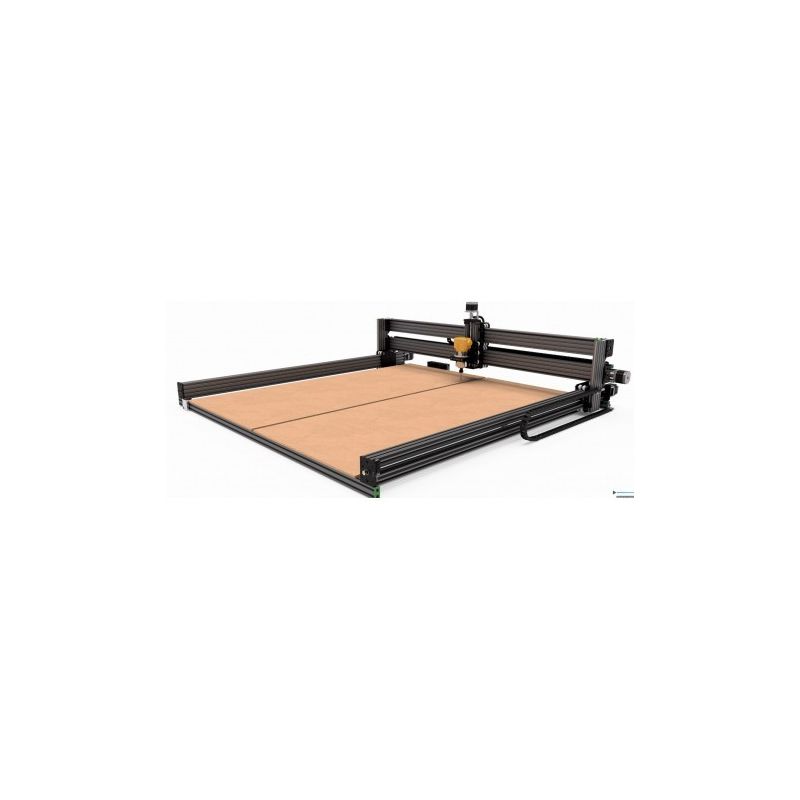

CNC PRO LEAD 1010 v2 is an improved model of the LEAD 1010 CNC milling machine. WORKING AREA (v2) IS (X/Y/Z): 750 mm x 810 mm x 90 mm (OLD MODEL WORKING AREA (X/Y/Z): 720 x 810 x 60 mm), two solid C-BEAM profiles form the X axis, and a double carriage significantly increases the rigidity of the X and Y axes.



Technical data of the PRO LEAD CNC 1010 milling machine:
Working area:
- X - 750 mm
- Y - 810 mm
- Z - 90 mm
Workpiece height: max. ~ 60 mm
Accuracy: 0.05 - 0.2 mm*
Overall dimensions: 1000x1000 mm (without motors)
Maximum working speed:
3500 mm/min

*Working accuracy depends on the material, motor, power supply, spindle and cutter selection.

The set includes:
- PRO LEAD CNC 1010
- DeWalt D2620 milling machine
- Stepper motors for axes NEMA 23 (23.9kg/cm (2.34Nm))
- 2 pcs. 10 mm MDF plates
- Z axis position sensor
- 3 pcs. X / Y / Z axis limit switches
- Safety switch
- 230V / 24V power supply
- 2, 3 and 4 wire cables
- Cable guides
- Profile end caps for covering some cables
- LED ring which illuminates the milling area
- Classic XLarge Z-axis carriage

By choosing the right tool, you can work with:
- Aluminum
- Soft and hard wood
- Plastic
- Foam
- Plywood
- MDF (Medium Density Fiberboard)

ADDITIONAL ACCESSORIES:
Assembly and calibration service:
- Not included (faster delivery)
- Include - €100 + VAT
Spindle:
- DeWalt D2620 (Included in the package)
- 1. 5kW CNC spindle with 230V inverter - €340.52 incl. VAT
Interface control panel - €328.77 incl. VAT
6W diode laser head - €1055.15 incl. VAT
Table:
- 4040 aluminum table on legs - € 258.50 incl. VAT
- 4040 aluminum table on wheels - € 258.50 incl. VAT
- Steel table on wheels - € 446.27 incl. VAT
- Steel table (wheels + legs) - €516.77 incl. VAT
Z axle
- Classic XLarge carriage (included in the set)
- Reinforced MGN carriage
Workbench base (1010):
- MDF 10 mm (included in the set)
- Aluminium V-SLOT 2080 profile table - € 234.77 incl. VAT

The PRO LEAD 1010 plotter has a split MDF base plate and an open open aluminum profile. The profile that divides the plates can be used to install various types of clamps and fasteners that hold the material in place.

Those who want to reinforce their structure, especially the rigidity of the Z axis, can choose carriages based on MGN guide rails and linear carriages.

This solution makes the Z-axis more rigid and allows you to work a little faster and more aggressively with many materials.



1. Available milling spindles:
- DeWalt D2620 milling machine
- Electronic speed control with speed maintenance
- Excellent surface quality of the processed material: wood, aluminum, plastic
- Precise depth setting mechanism
- Variable speed from 16,000 to 27,000 rpm /min
- Spindle lock mechanism for quick bit change - one key
- Compatible with many accessories
- Dual LED lighting increases visibility of the work surface

TECHNICAL DATA
- Input power 900 W
- Usable power 620 W
- No-load speed 16000-27000 rpm /min
- Stroke length 55 mm
- Connection size 6-8 mm
- Cutter diameter 36 mm
- Weight 1.9 kg
- Length 120 mm
- Height 200 mm
- Hand/arm vibration 6.8 m/s2
- Measurement uncertainty K 1 (vibration) 2.7 m/s2
- Sound pressure 77 dB (A)
- Measurement uncertainty K 1 (noise) 2.8 dB (A)
- Sound pressure 88 dB (A)
- Measurement uncertainty K 2 (noise) 2.8 dB (A)



1.5kW CNC spindle with 230V inverter
TECHNICAL DATA:
- Motor power: 1.5 kW
- Cooling: air
- Voltage: 220V
- Frequency: 400Hz
- Speed: 1000-24000 rpm
- Runout tolerance: approx. 0.01 mm
- Chuck: ER11 (3.175–4 mm)
- 1.5 kW VFD inverter with 230 V converter
- Input voltage: 220-230V
- Output voltage: 208-240V
- Input frequency: 48-63Hz
- Output frequency: 0-63Hz
- Input phase: single phase
- Initial phase: three phases
- 5-digit display (frequency, rotation direction, counter, etc.)
- Operating temperature: -10 to +40C
- Vibration: approx. 0.5 g
- Material to be processed: plastic, soft and hard wood, as well as aluminum for engraving and other light work, aluminum, copper or brass.



2. EQUIPMENT CONTROL AND SOFTWARE:
BlackBox Openbuilds - The controller supports 3 axes and has many additional features such as laser support, plasma support, limit switch support and much more.
Main features of the BlackBox OpenBuilds driver:
- Configurable onboard relay for general use (plasma trigger, coolant pump switch, shaft control)
- USB interface (plug and play)
- Input power polarity protection with LED indicator
- Input fuse 10A
- Signal output 5V / 5V PWM for shaft
- Analog signal output 0-10V - Connector for connecting safety switches
- 3 Endsop outputs
- Inputs for connecting X / Y / Z probes
- 'Slave' axis can be configured as Slave X, Y or Z
- Potentiometers for current adjustment, located in an ergonomic position
- Power switch
- Fan located in the housing, ensuring stable operation of the controller
- ATmega328p microcontroller with Grbl 1. 1 system
- High-quality housing with LED diodes
- Dimensions 171 mm x 80 x 36.4 mm
- Easy installation on aluminum V-SLOT profiles and other construction profiles with 5/6 / 8mm groove
- Well-placed connectors



SOFTWARE:
The BlackBox OpenBuilds CNC control panel is ready to work with free software supplied with the panel.
OpenBuilds Control is an intuitive, easy-to-use program that allows you to operate the above-mentioned devices.
The program is quick to learn, and the software is clear and easy to use. (available in English only)


WARNING! The OpenBuilds Control software is responsible for controlling the milling machine and executing projects according to a pre-prepared project saved as G-CODE.
Various CAD/CAM software is available for creating drawings, which must be purchased separately, such as Vectric or Autodesk Fusion360 (also available in a free version)!
