Garināšanas zāģis DMDK-50C

Name: Garināšanas zāģis DMDK-50C
Brand: REMA
SKU: DMDK-50C
Availability: BackOrder

Zīmols: REMA

Artikuls: DMDK-50C

cena pēc pieprasījuma

TECHNICAL DETAILS

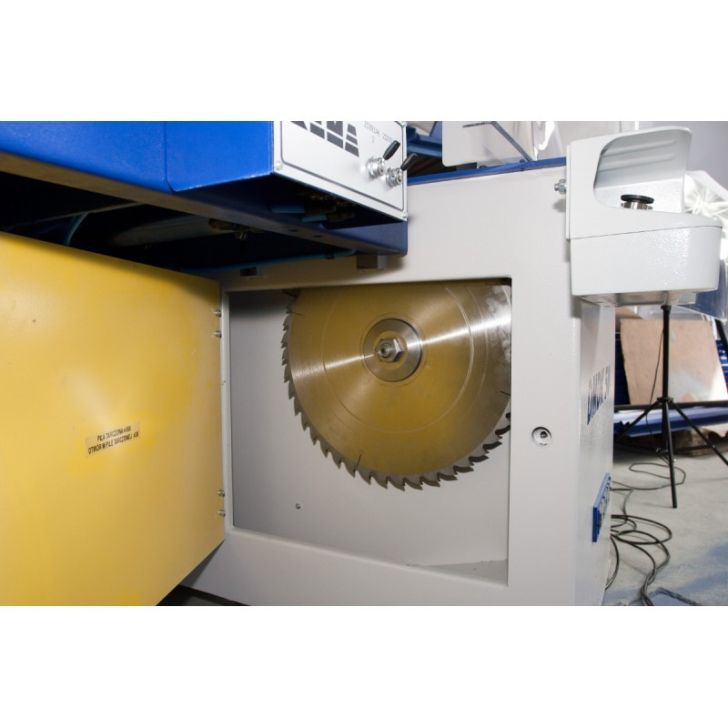

The diameter of the saw blade	⌀ 500 mm
Max. height sawing	160 mm
Max. sawing width	585 mm
Engine power	6 kW
Spindle speed	3000 rpm
The diameter of the spindle nose	⌀ 30 mm
Frequency of operating cycles (infinitely adjustable)	0 - 15 cykli/min
Connection diameter suction top	⌀ 125 mm
Connection diameter suction lower	⌀ 125 mm
Nominal pressure of compressed air	0,6 Mpa
Compressed air requirement	30 m3/h
The demand of air in the top of the vacuum system	1300 m3/h
Air demand in the bottom of the vacuum system	1300 m3/h
Height to the table surface	894 mm
Weight	700 kg
