Technical data:
| Length | 1125 mm |
| Width | 700 mm |
| Height | 955 mm |
| Table height | 830 mm |
| Planing table | 1125x 260 mm |

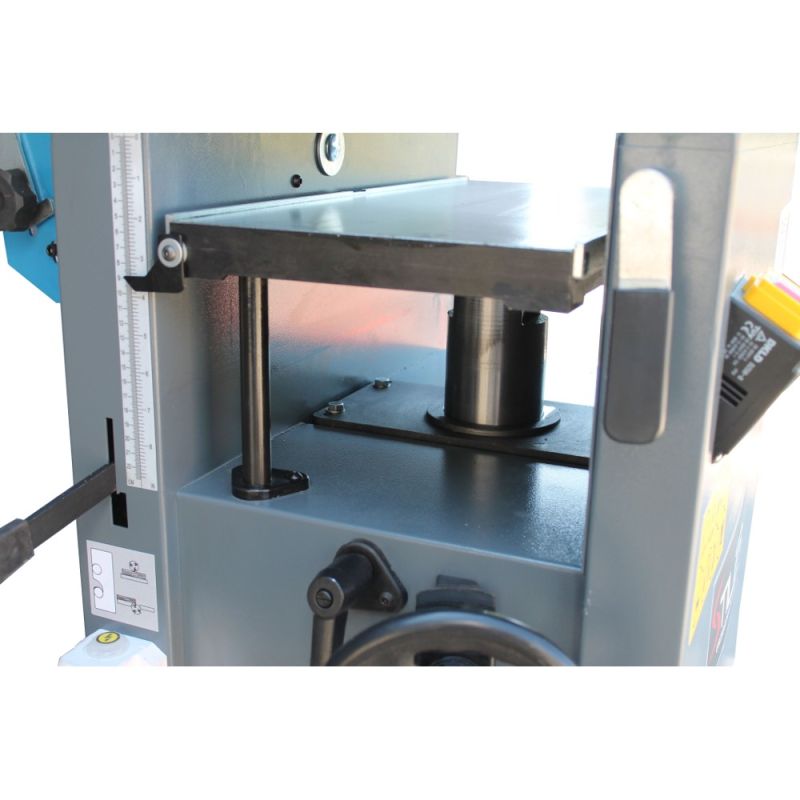

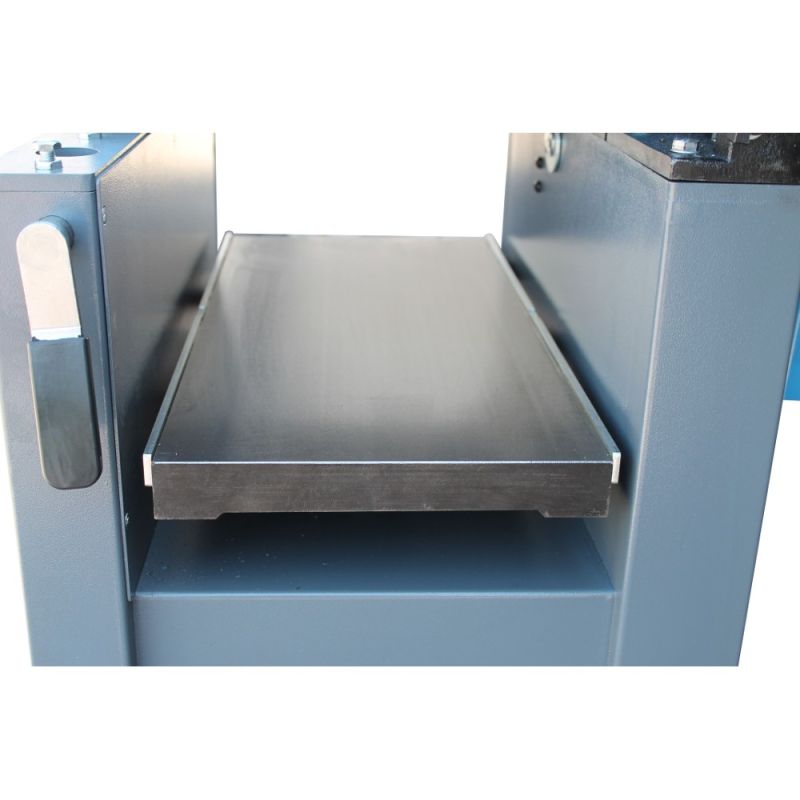

| Thick planing table | 545 x 258 |
| Weight | 195 kg |
| Tension | 400 V |
| The power of the continuous work engine S1 | 2.2 kW |
| Nominal frequency | 50 Hz |
| Download speed | 5.5 m / min |

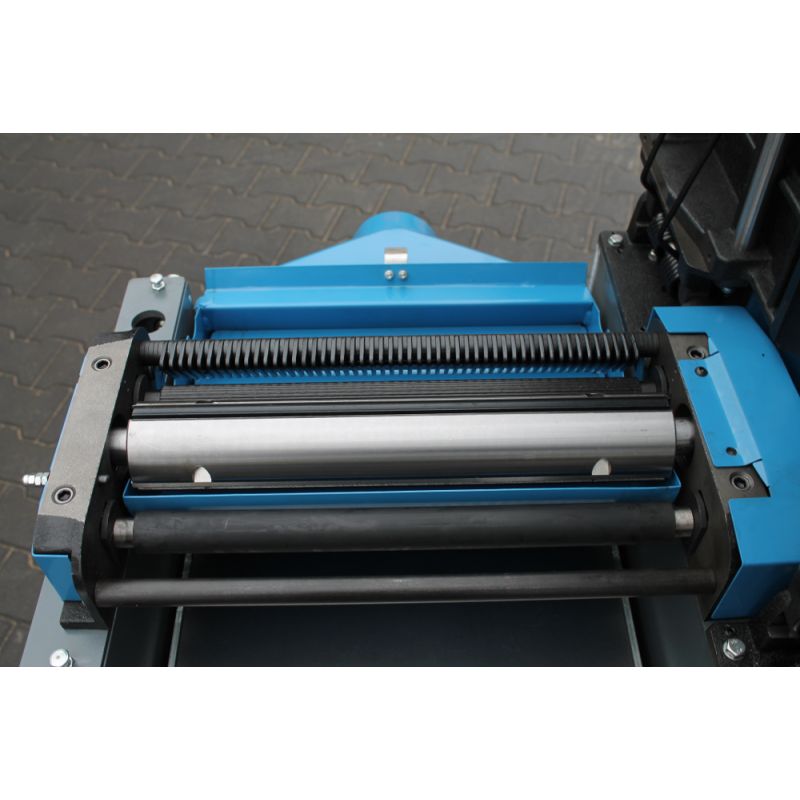

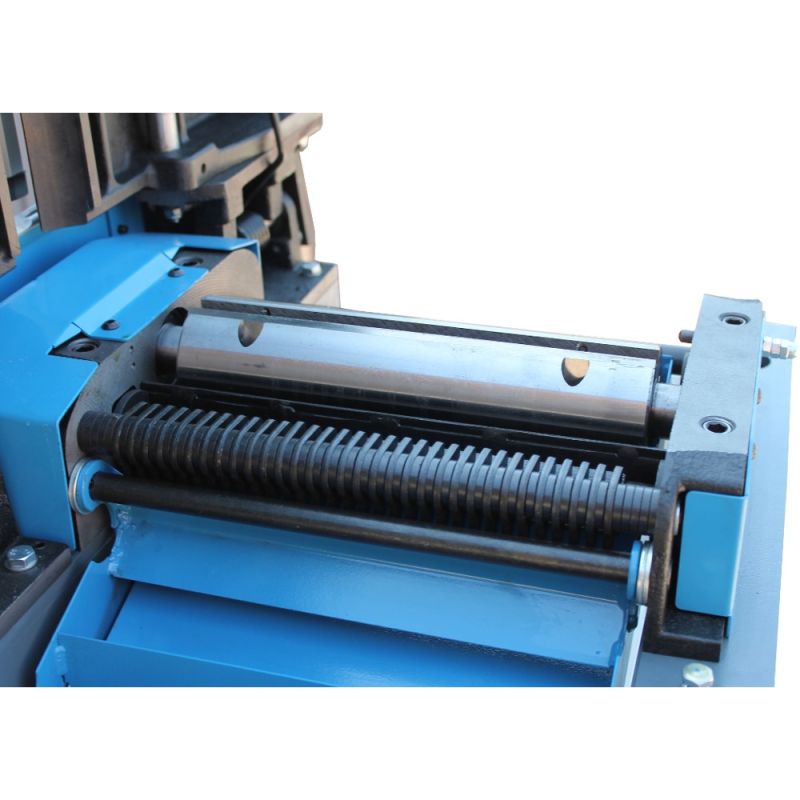

| Diameter of the cutter head | Ш 70 mm |
| Number of knives on the head | 3 pieces |
| The dimensions of the knife | 260 x 25 x 3 mm |
| Head rotation without load | 5500 obr./min. |
| The diameter of the feed rollers | Ш 32 mm |
| Maximum planing width | 260 mm |
| Maximum planing depth | 3 mm |
| Angle of inclination of the guide | 0 ° - 45 ° |
| Maximum width of thick planing | 258 mm |
| Maximum depth of thickness planing | 2.5 mm |
| The maximum material height for thick planing | 225 mm |
