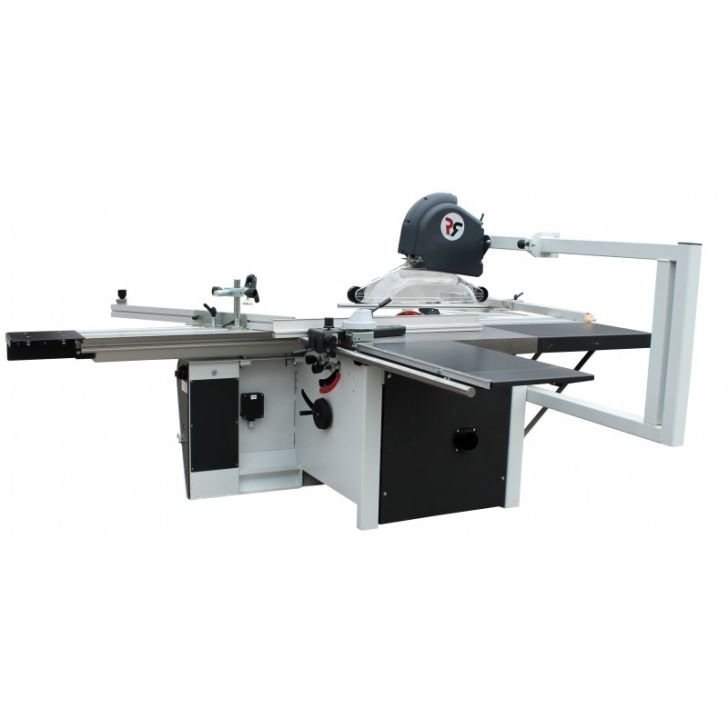

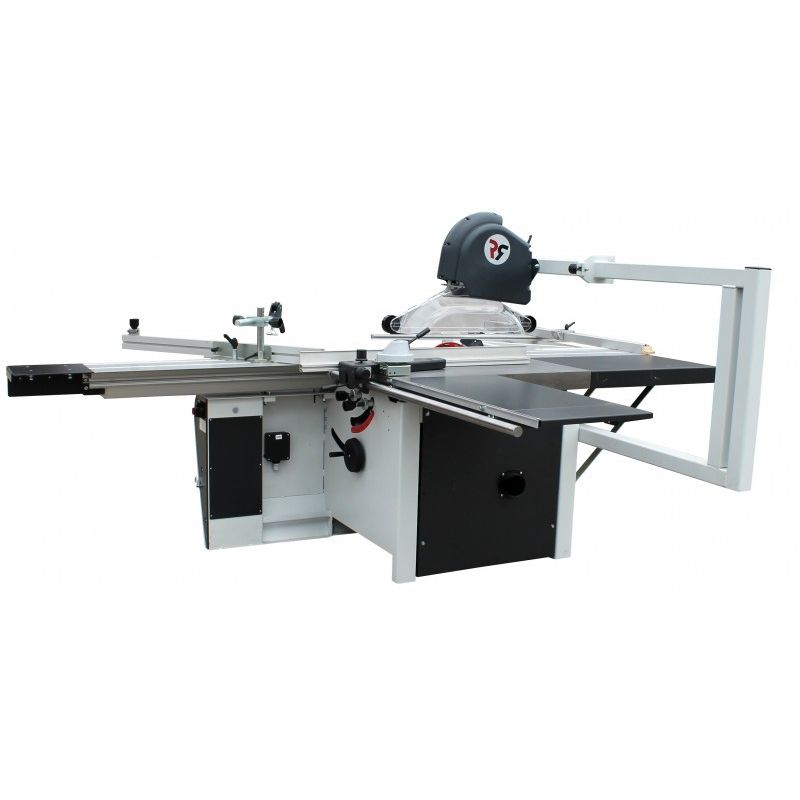

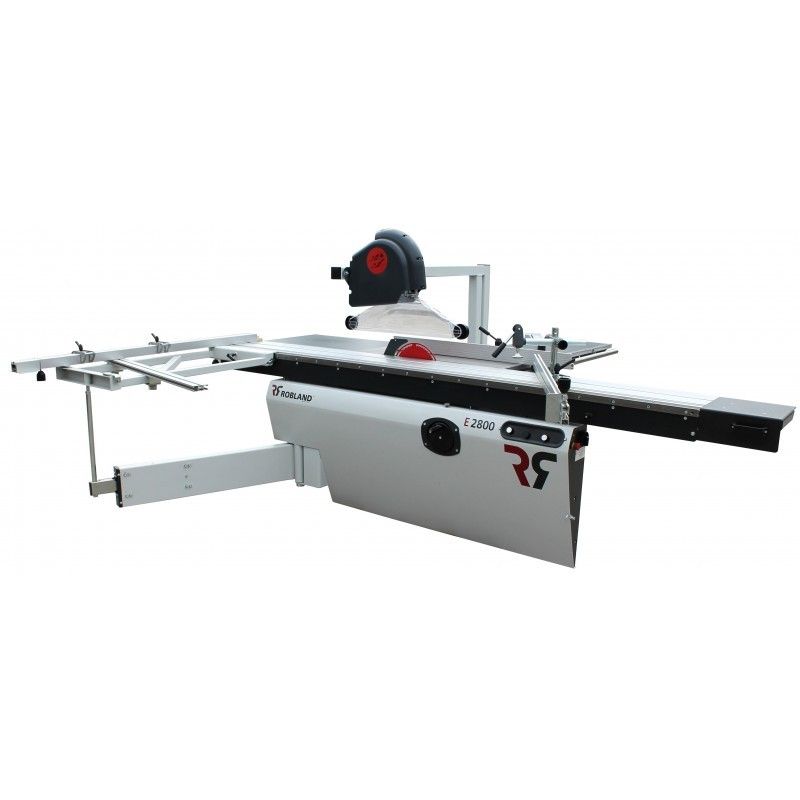

Technical data:
| Power of the main engine with star-delta manual start | 4 kW |
| Spindle motor power | 0.55 kW |
| The length of the side aluminum carriage | 2800 - 3100 mm |
| Masa netto | 550 kg |
| The maximum diameter of the circular saw | 315 x 30 mm |
| Maximum sawing height | 100 mm |
| Maximum sawing height at 45 degrees | 70 mm |
| Tilt saw blade | 90 - 45 degrees |
| The number of revolutions per minute | 4500 |
| Diameter of the cutting spindle | 120 x 20 mm |
| The height of sawing the spindle | 5 mm |
| The number of revolutions per minute of the podcinaka | 6500 |
| Dimensions of the fixed table | 940 x 510 mm |
| Dimensions of the side car | 2800 x 310 mm |
| Cutting length | 2800 - 3100 mm |
| Sawing width on the right side | 1270 mm |
| Diameter of the chip extraction nozzle | 120 - 80 mm |
