Robland
E300-1700
cena pēc pieprasījuma

Apraksts

Technical data:

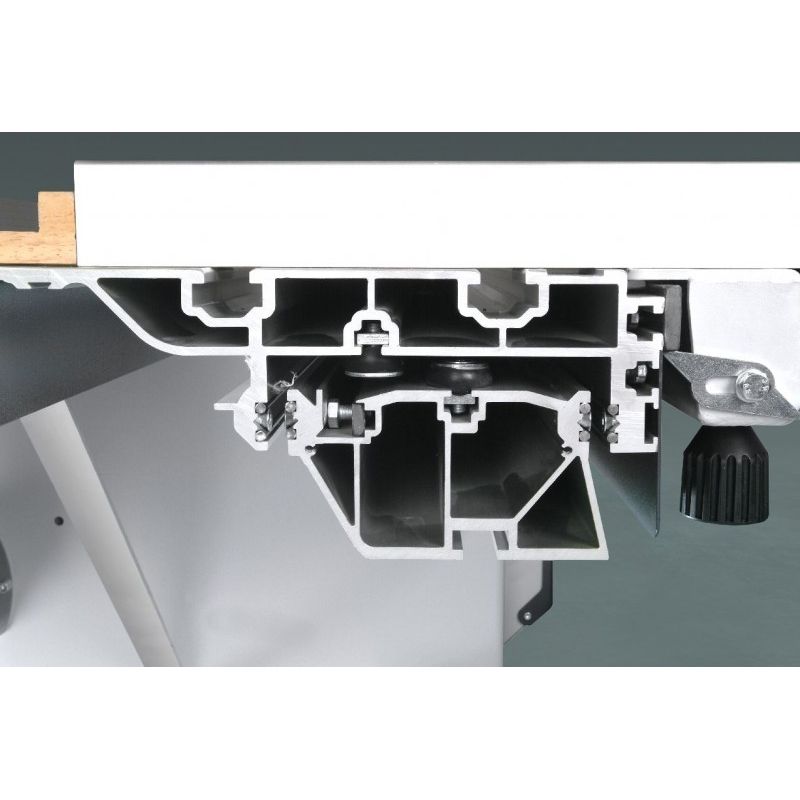

Guides with hardened steel rods Tak

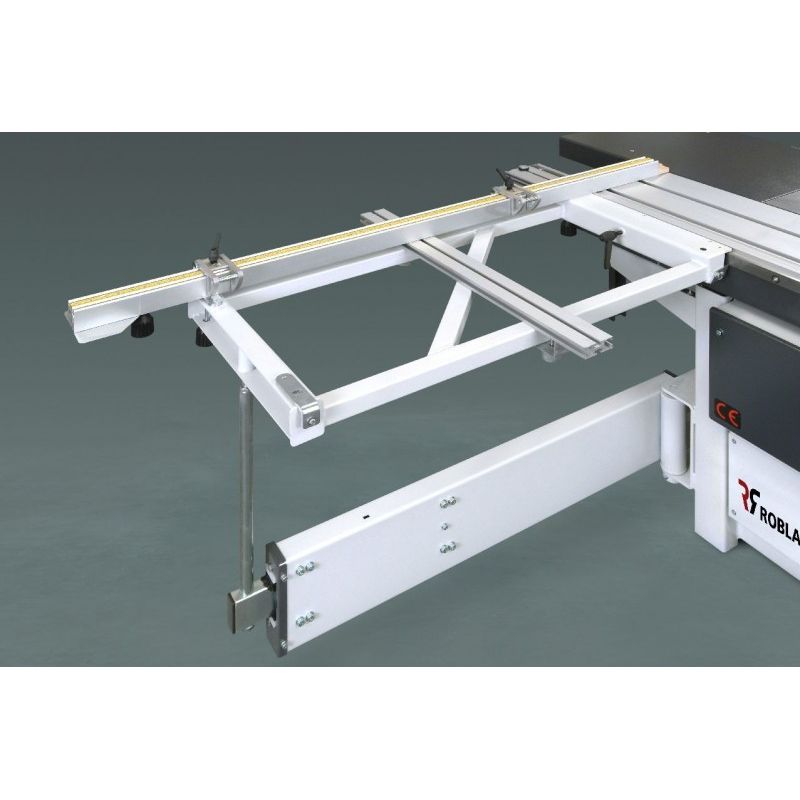

Side trolley with a width 420 mm
Engine power 4 KW
The undercutter spindle motor power 0.55 KW
The type of engines S1 (for continuous operation)
The maximum diameter of the circular saw 315 mm

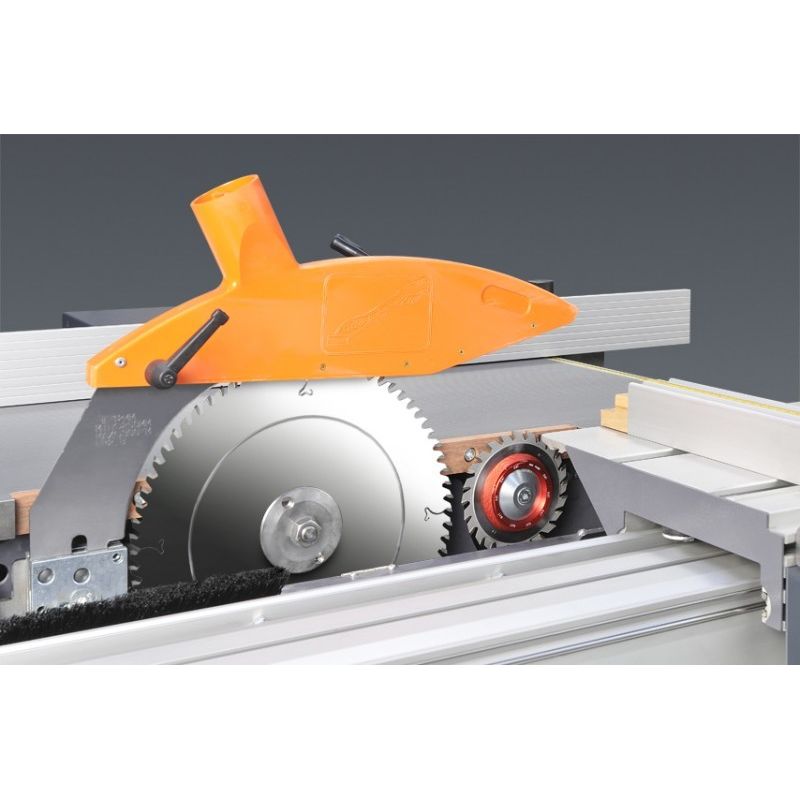

Maximum diameter of the undercut saw 120 mm
Maximum sawing height at a 90-degree angle 120 mm
Maximum sawing height at a 45 degree angle 80 mm
Tilt saw blade 90 - 45 degrees
The length of the table 1700 mm
Sawing width on the right side 1180 mm
The number of revolutions per minute 4500
The number of revolutions per minute of the undercutter 6500
The height of sawing the spindle 5 mm
Dimensions of the fixed table 940 x 510 mm
Dimensions of the side table 720 x 450 mm
Dimensions of the table extension 1060 x 510 mm
Masa netto 450 kg
