TECHNICAL DETAILS
| Cutting parameters | |
| The diameter of the main saw blade | ⌀ 300 - ⌀ 450 mm mm |
| Vertical adjustment height of the main saw | |
| for a saw ⌀300 | 0 - 75 mm |
| for a saw ⌀350 | 0 -100 mm |
| for a saw ⌀400 | 20 - 125 mm |
| for a saw ⌀450 | 45 - 150 mm |
| Height of saw blade adjustment at 45° | |
| for a saw ⌀300 | 0 - 50 mm |
| for a saw ⌀350 | 0 - 70 mm |
| for a saw ⌀400 | 12 - 85 mm |
| for a saw ⌀450 | 30 -105 mm |
| Tilting circular saw | 0 - 45° / (opcja) 0 - 46 ° |

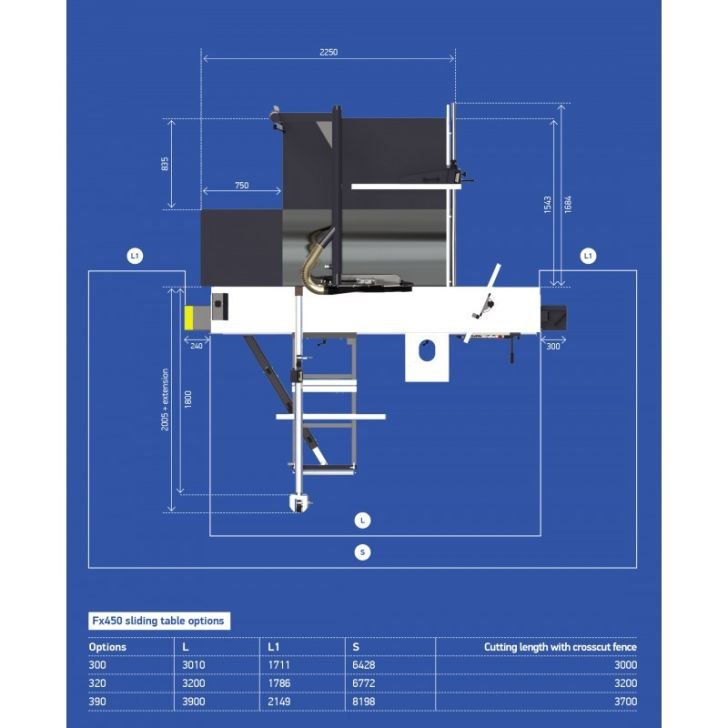

| The length of sawing using auxiliary table | |
| with terminal set from the back of the table | dla stołu ruchomego 300 = 3000 mm |
| with terminal set from the back of the table | dla stołu ruchomego 390 = 3700 mm |
| with terminal set from the back of the table | dla stołu ruchomego 320 = 3200 mm |
| Width of sawing using auxiliary bumper on the table | |
| Bumper | 50 – 1750 mm |
| Slide | 1965 - 3200 mm |

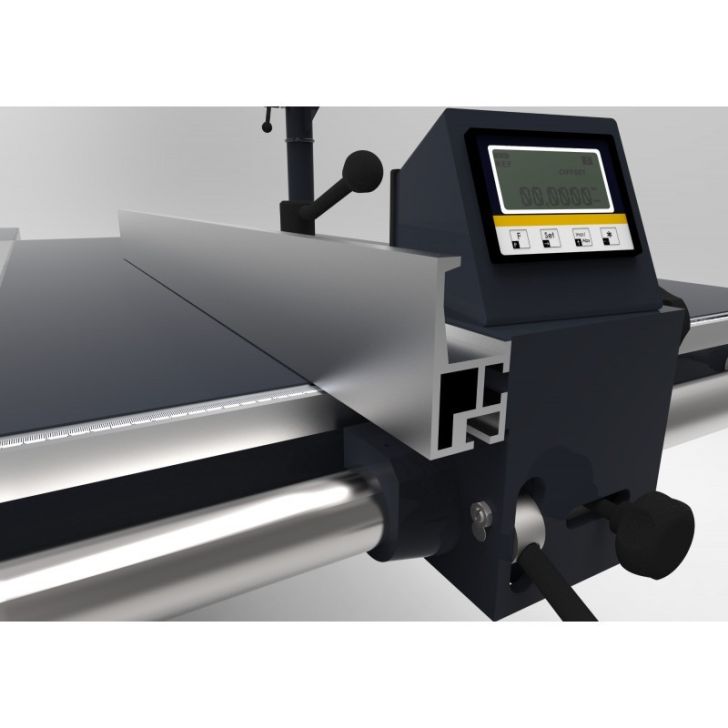

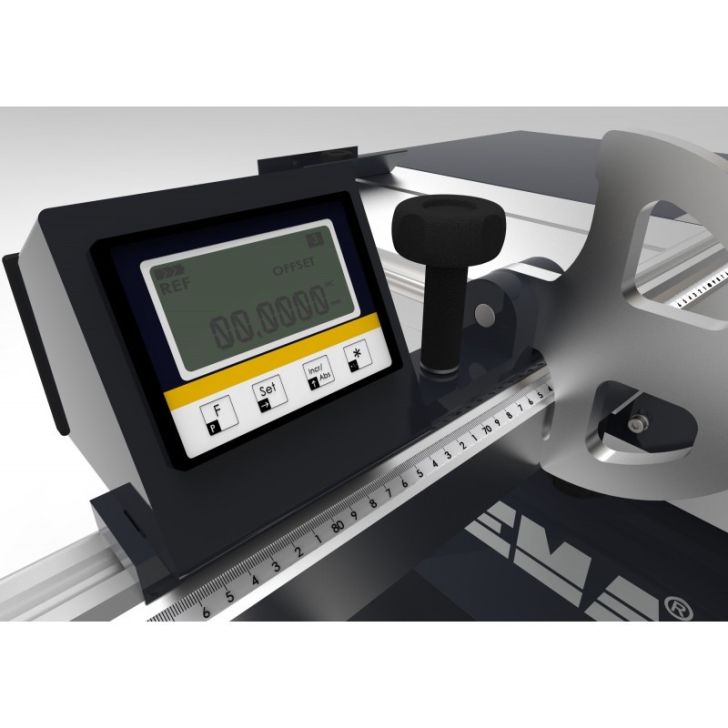

| Bumper with digital reading | 50 -1630 mm |
| Max. the longitudinal distance from the saw | 1400 mm |
