TECHNICAL DETAILS

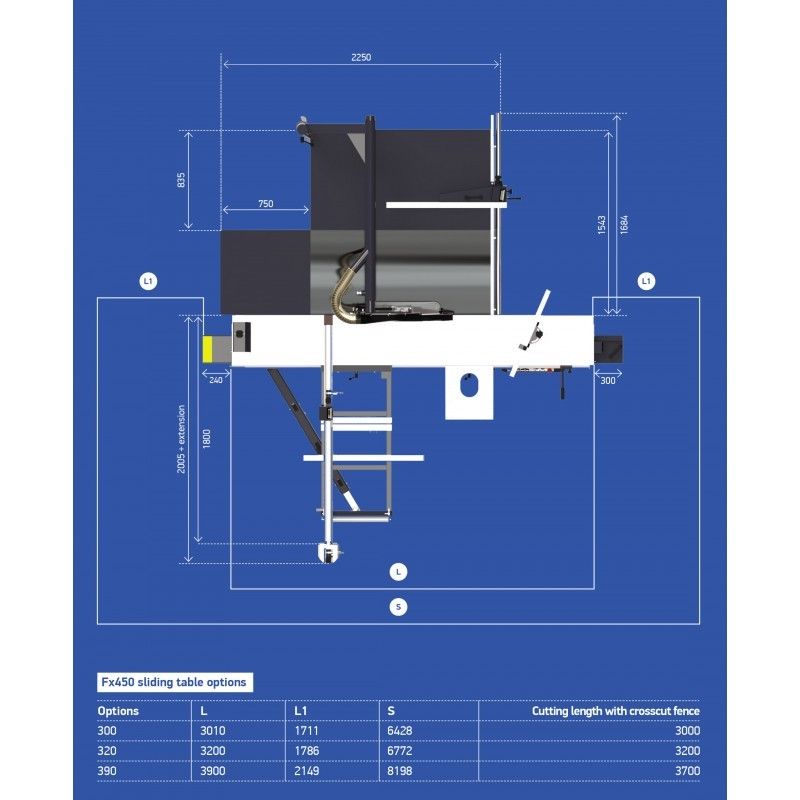

| Saw dimensions | |
| length | 2400 mm dla stołu 1900 mm |
| length | 3000 mm dla stołu 2500 mm |
| length | dla stołu 3010 mm |
| width | 3500 + wysuwka, łącznie 5000 mm |
| maximum height | 1310 mm |
| The outer diameter of the sawdust - the upper cover | ⌀ 80 mm dla Fx350, dla Fx315 - Φ60 mm mm |
| The outer diameter of the sawdust - the bottom nozzle | ⌀ 125 mm |
| The demand of air suction bottom | 900 m3/h |
| Air consumption covers the top | 360 m3/h |
| The air speed in the suction nipples | 28 m/s |
| Mass | 800 kg |
