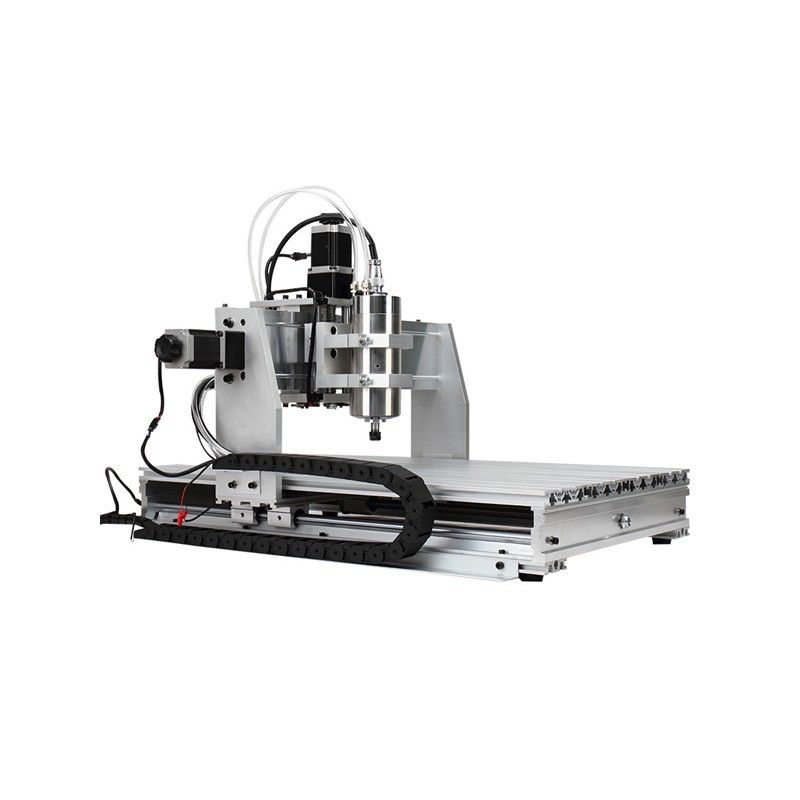

| Dimensions of the machine: | 880 x 690 x 520mm |
| Working field: | 600 x 400mm |
| Max material thickness: | 100mm |
| Dimensions of the T-bar: | 750 x 480 x 20mm |
| Implementation of the frame: | Aluminum 6063 and 6061 |
| Ball screws: | SFU 1605, 16 x 5mm |
| Linear guides: Dimension X: Dimension Y: Dimension Z: |
Chrome-plated shaft and linear bearings (61 HRC) fi 20mm fi 16mm fi 13mm |
| Step motors: | Holding torque: 1.8Nm Current: 3.0A Steps / revolution: 200 / 1.8 ° Resistance: 1Ohm Inductance: 3.5mH Number of wires: 4 |

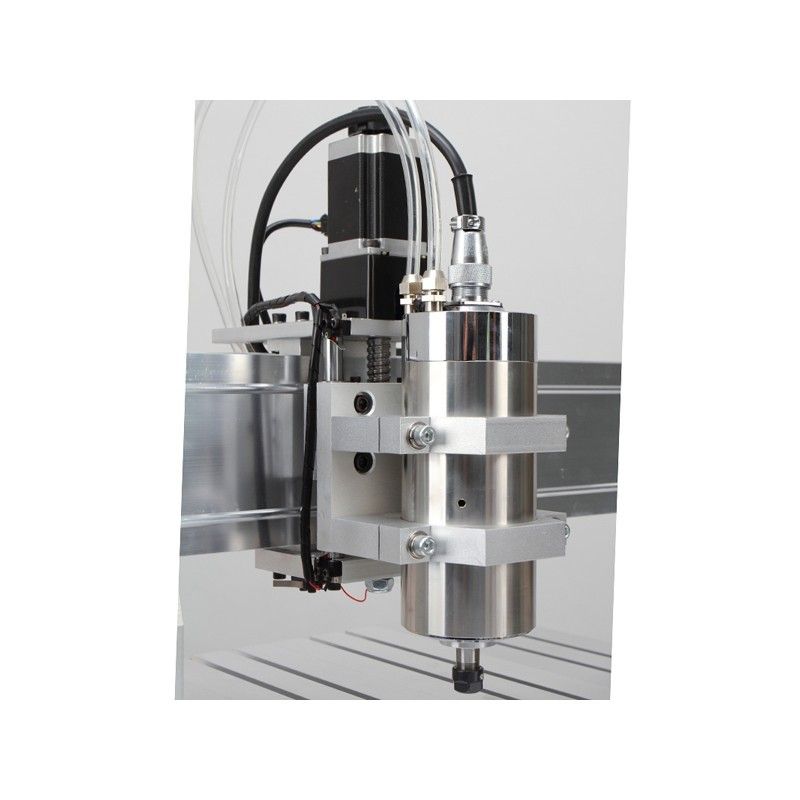

| Spindle: | 1.5 kW, ER11 (6 mm), water-cooled |
| Spindle speed: | 3000 - 24000 RPM / min |
| Spindle accuracy: | radial <0.03 mm, axial <0.01 mm |
| Max positioning speed: | 4000 mm / min |
| Positioning accuracy: | 0.05mm |
| Cutting speed: | 300 - 2500 mm / min |
| Rotary axis: | Expandable |

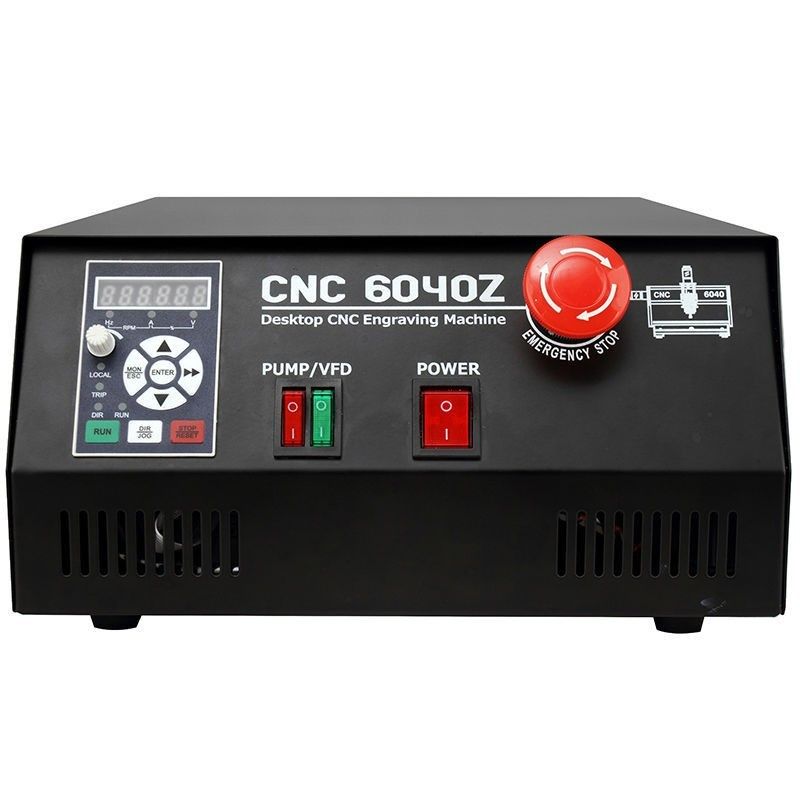

| Safety device: | Emergency stop button |
| Software: | Mach3 |
| Supported formats: | Gcode / .nc / .ncc / .tab / .txt |

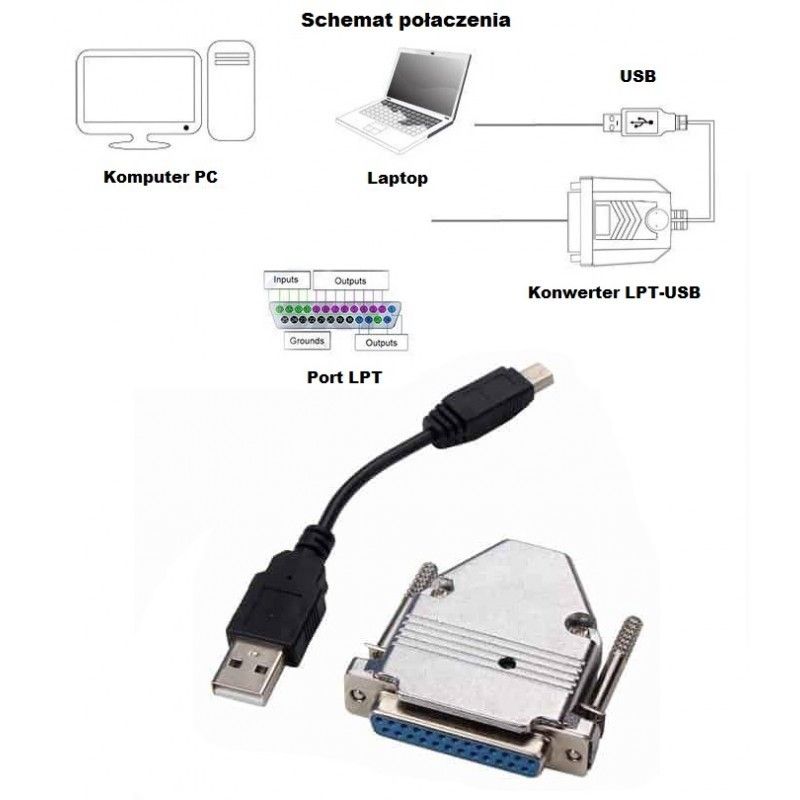

| Communication interface driver - PC: | LPT |
| Power supply: | 220 VAC |
| Machine weight: | 60kg |

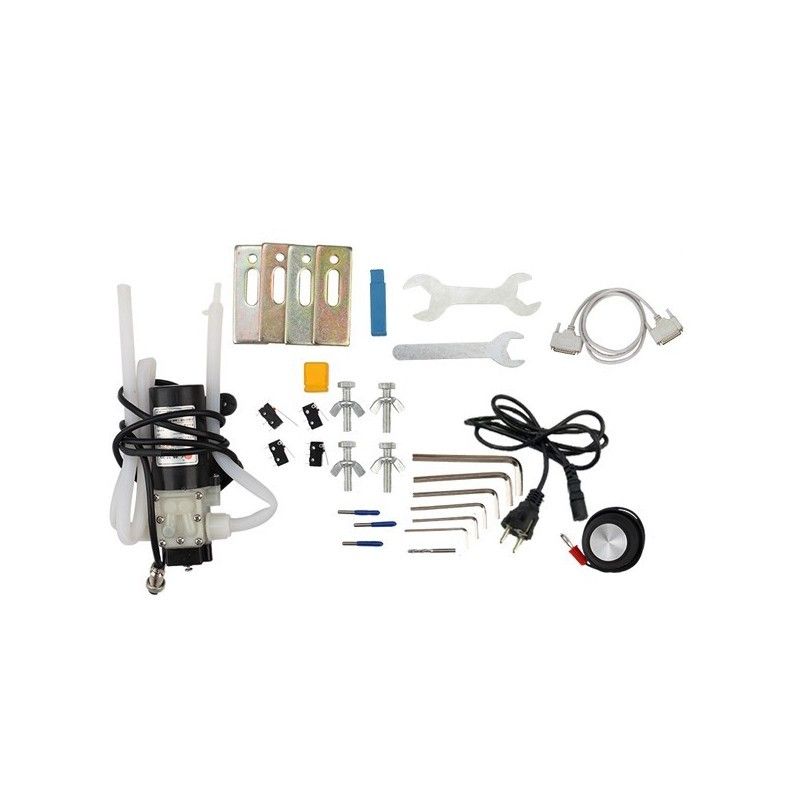

| Additionally in the set: | cutters, LPT cable, mounting bracket, water pump |
